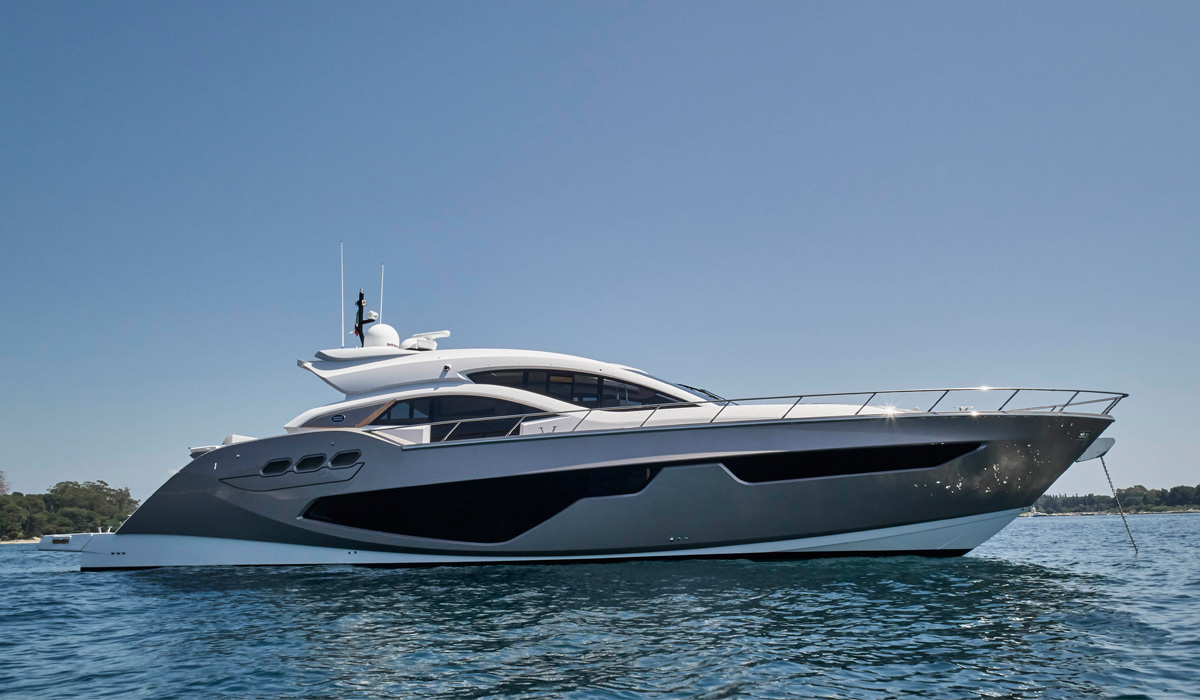

Elegance a síla jsou na této lodi nepřehlédnutelné. Atmosféra interiéru charakterizovaná novou dimenzí žití byla stvořena tak, aby evokovala domácí prostředí, aniž by byl obětován „námořní pocit“. Mořeplavba a design se zde snoubí tak, aby vytvořily pocit každodenního života. Světlo zde na této lodi hraje významnou roli, a to převážně v hlavní kajutě, která je skutečnou dominantou C68.
DECK: S/S bow roller - anchor winch with barbotin and stop chain included - anchor 50 kg and 8mm chain in galvanized steel 50m - S/S bow pulpit and boat profile - stainless steel bow, mid-ship and stern cleats - windshield wipers with automatic washer system - disappearing hot/cold shower - high pressure water inlet - holding water tank drain outlet from shore - bow sidepath in teak - bow sunpad with storage underneath and S/S handrail - double chaise-longue and disappearing headrest - foredeck hatch - teak steps.
COCKPIT: Teak floor - mast with: navigation lights, horn, remote searchlight - access to the saloon through tempered glass sliding door with 3 shatters openable right and left side - hangar for tender housing with launching rollers and electric winch - hangar door with electro-hydraulic opening - cockpit divan convertible into sunbathing area - table with top in teak - nr. 02 housing for liferaft - door for crew cabin access - door engine room access - teak furnitures with lacquered shatters, fridge 65L and objects holders - control panel for hydraulic and electric systems - stern winches - led type courtesy spots and lights - loudspeakers - double power shore cable and high pressure water dock filler - bathroom hot/cold shower.

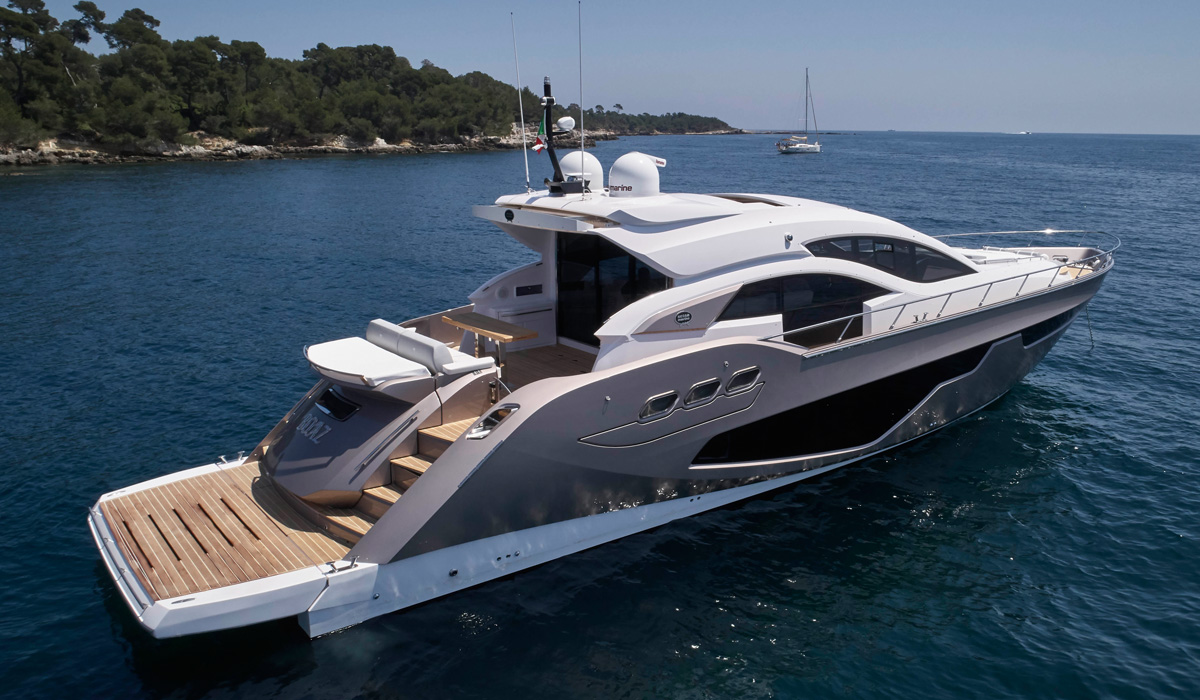

BATHING PLATFORM: Teak decking - hydraulic movement - S/S disappearing ladder - disappearing cleats for tender mooring.

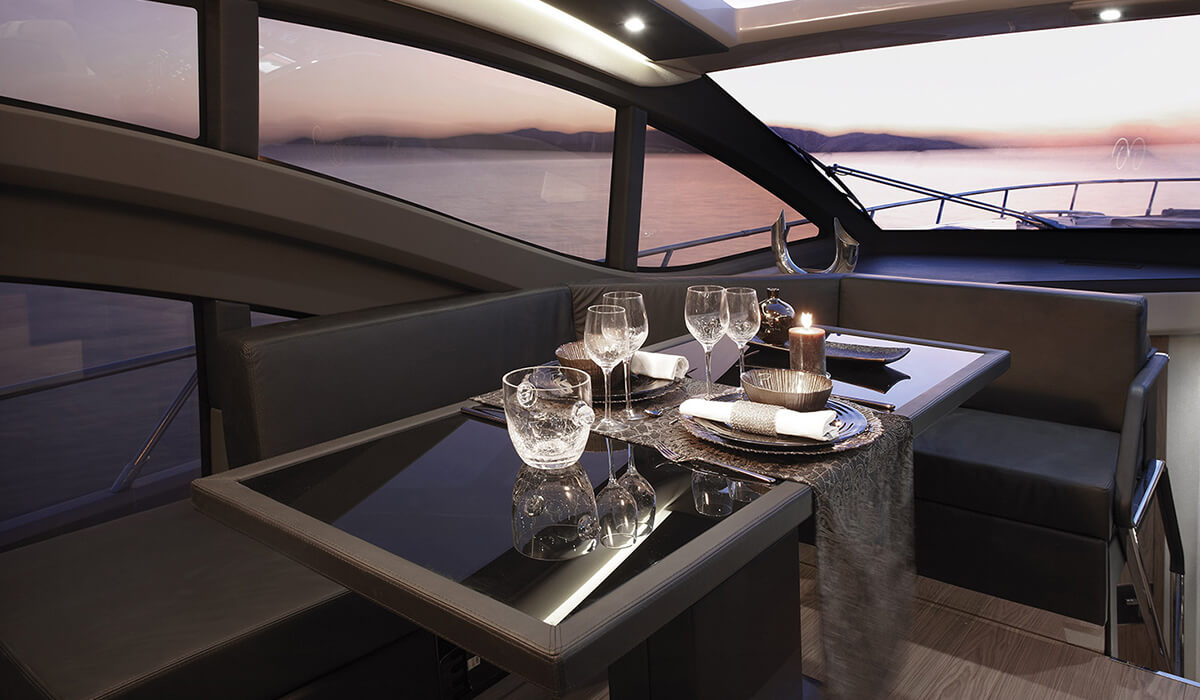

SALOON: mirrored windshield glasses - electrical opening hard top - Hard Top with fixed and antireflexion window - tissue saloon sofa with drawers underneath and small table with leather top - leather sofa in lunch area and table with leather and glass top - L-shape walnut furniture with mirrored doors - furniture with double pilot/copilot seat and documents holder - stereo cD system with front aux inlet and loudspeakers - led type spots - carpet floor - air conditioning.
CONSOLE: Dashboard with leather sunlid - compass - personalized steering wheel in matching leather - levers engine controls - manual fire extinguisher system - engine instrument board complete with digital indicators for the engine parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel level) - back-lighted switch panel - N. 2 cartographic GPS Raymarine E127 with Fishfinder - multi-function display I70 - autopilot - chain counter - digital control panel for flaps - joystick control for search light.

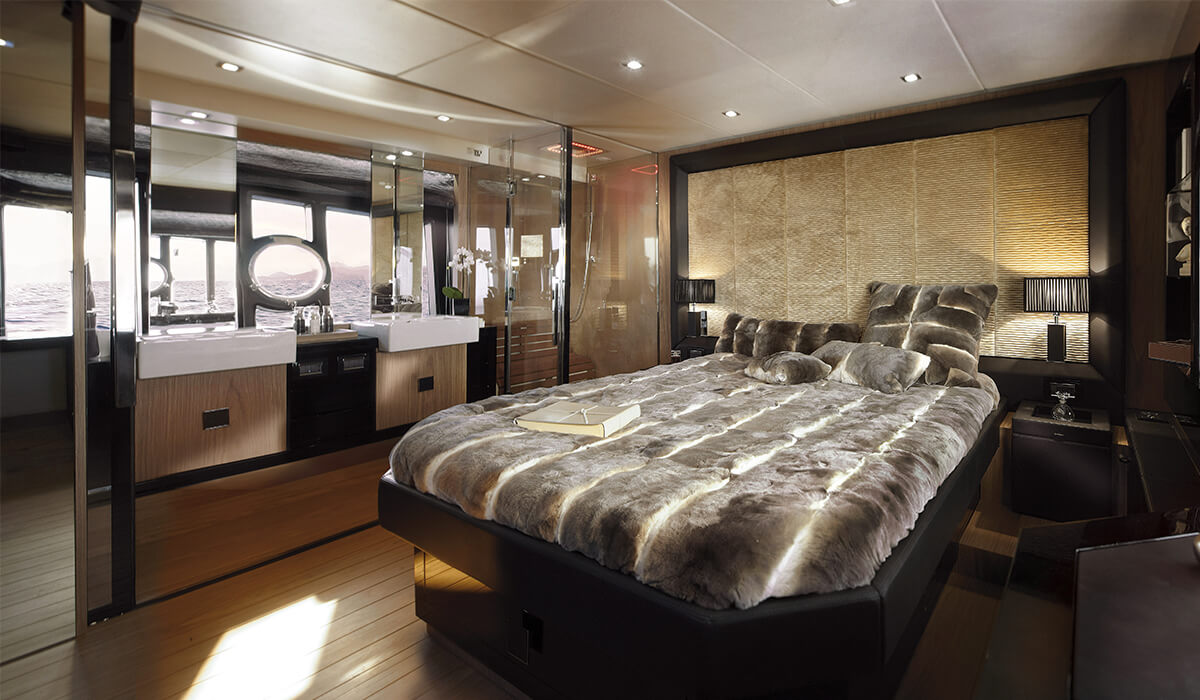

MAIN CABIN: Double bed with storage underneath, mattress, pillow and bedspread - chest of drawers under bed with leather surface - nut wardrobes - side night tables with jewellery box - leather headboard and tissue central panel - reading lights - led type spots - ambience lights under windows - venetian wooden curtains - side panoramic window with S/S opening portehole - vanity beauty case and pouff - carpet floor - direct and reserved access to the main toilet - air conditioning.

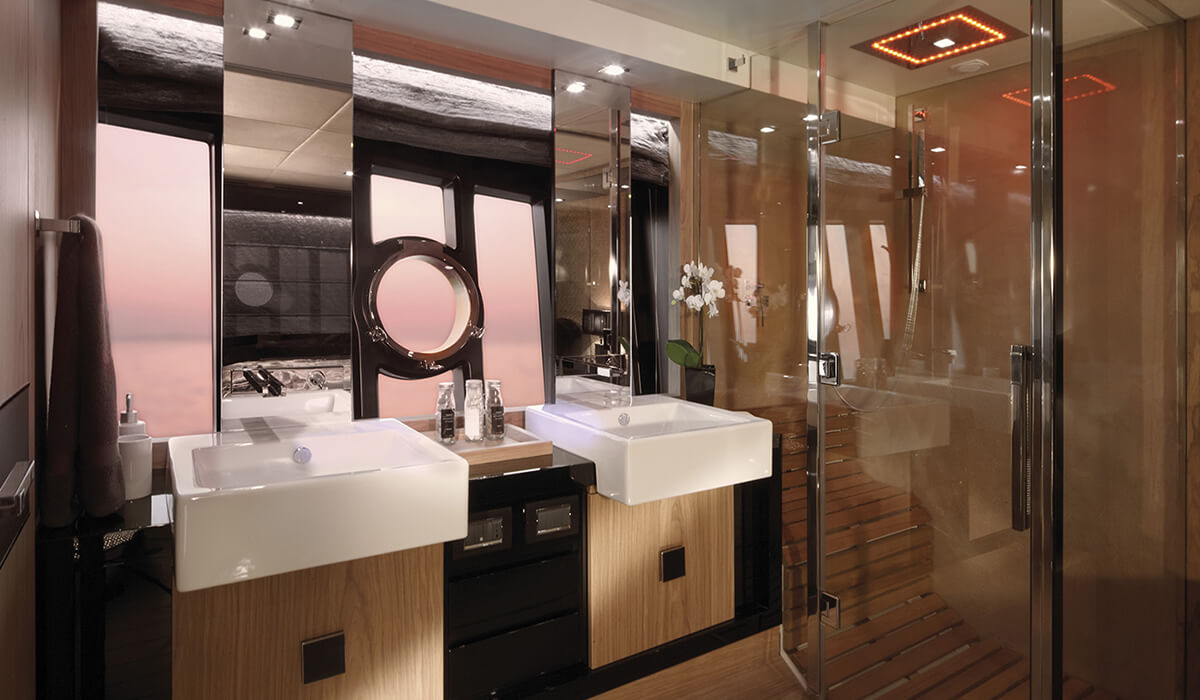

MAIN TOILET: Furniture with lacquered top, walnut doors and double ceramic sinks with mixer taps - mirror - panoramic window with S/S opening porthole - shower room with teak floor, teak seat, mixer tap and ceiling shower head - crystal shower box - separated toilet room with marin Wc, fresh water flush - bidet shower - walnut flooring - bathroom accessories - let type spots - venetian wooden curtains.
VIp CABIN: Double bed with storage rooms underneath, mattress, pillows and bedspreads - chest of drawers under bed with leather surface - walnut wardrobes - side night tables with jewellery box - reading lights - mirror - S/S opening portehole - led type spots - ambience lights under windows - venetian wooden curtains - carpet floor - direct and reserved access to the toilet - air conditioning - opening hatch.

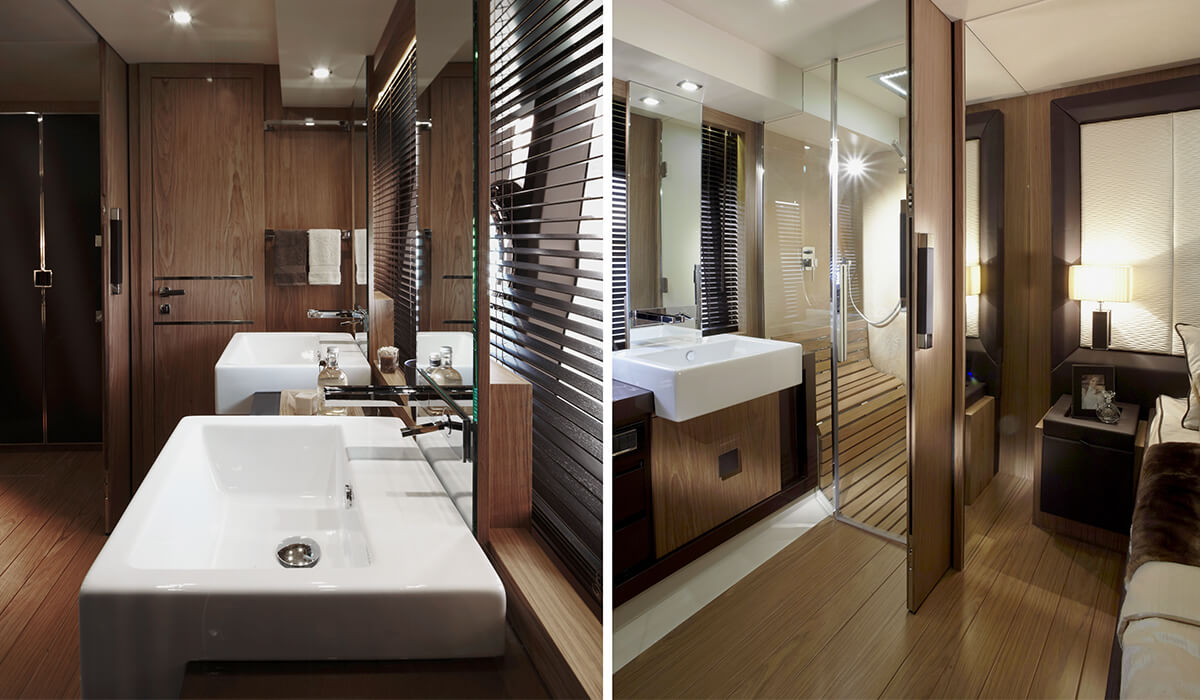

VIP TOILET: furniture with lacquered top, walnut doors and ceramic sink with mixer tap - marin Wc - bidet shower - shower with teak floor, teak seat, mixer tap and ceiling shower head - crystal shower box - walnut floor - mirror - led type spots - S/S opening porthole - venetian wooden curtains - bathroom accessories.

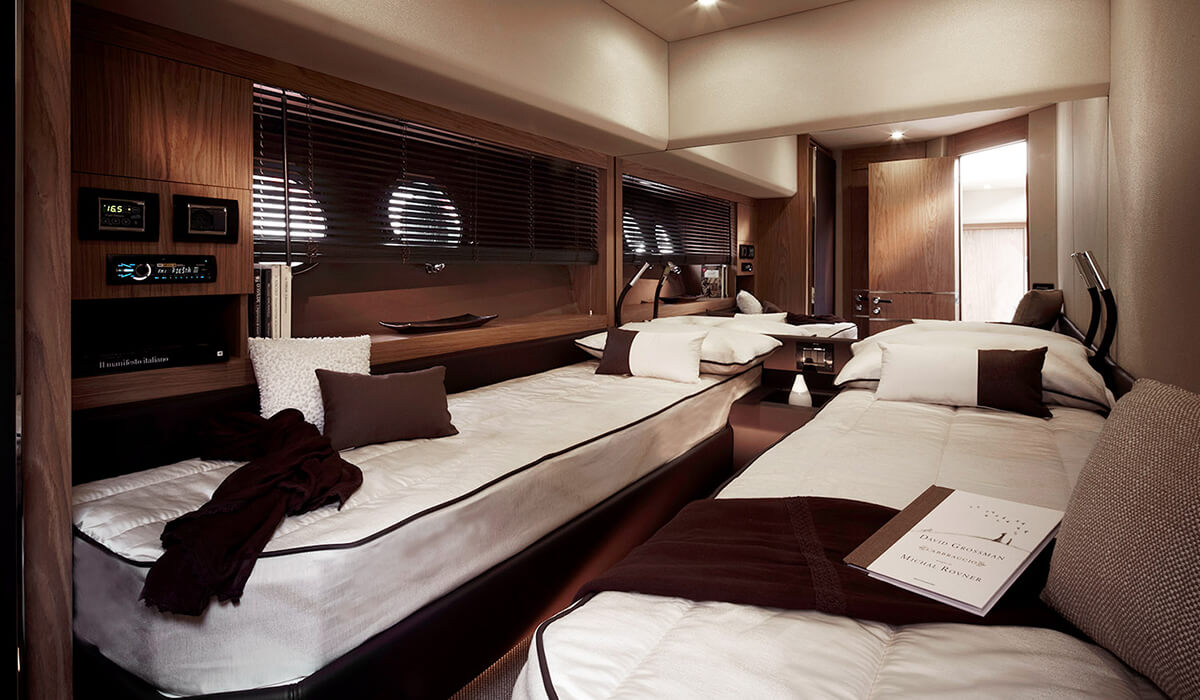

GUEST CABIN: Twin beds convertible in double bed with storage underneath, mattress, pillow and bedspread - night tables with jewellery box - walnut furniture - walnut cabinet with open compartment - S/S opening portehole - venetian wooden curtains - access to the toilet - reading lights - led type spots - ambience lights under windows - air conditioning - carpet floor.
GUEST TOILET: Double access from guest cabin and saloon - furniture with lacquered top and walnut doors, with ceramic sink and mixer tap - marin Wc - bidet shower - shower with teak floor, mixer tap and ceiling shower head - plexiglass shower box - walnut floor - S/S opening porthole - mirror - led type spots - venetian wooden curtains - bathroom accessories.

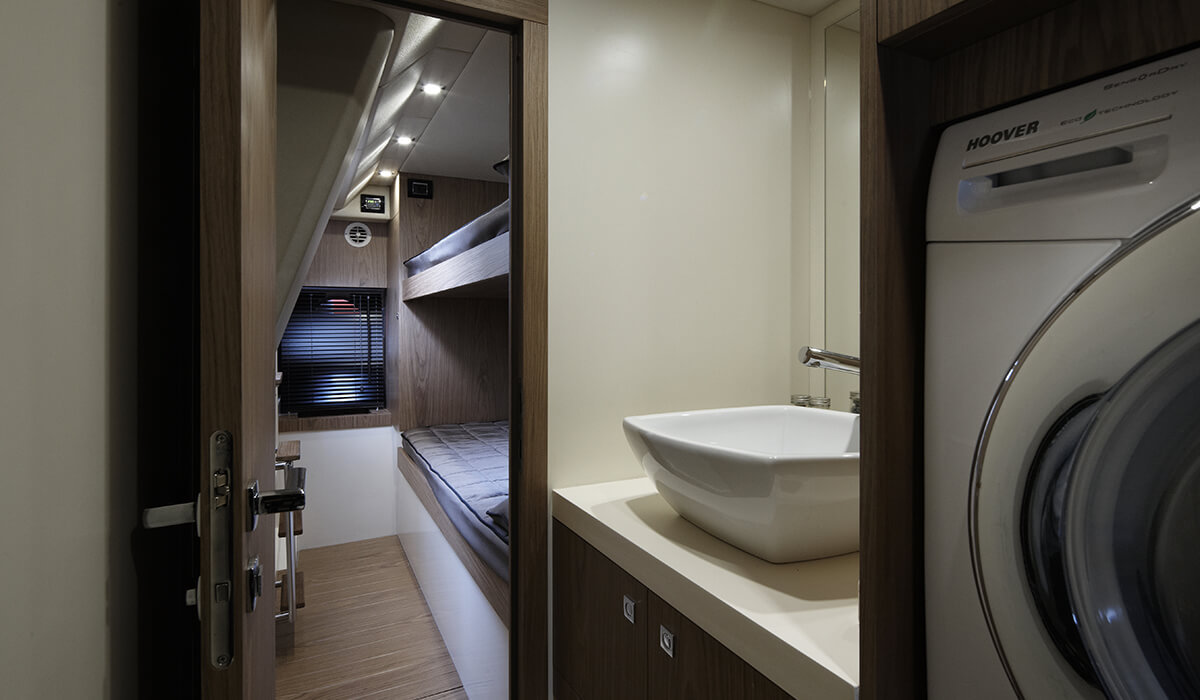

CREW CABIN: Double private access - stainless steel stairs - divan convertible in two single beds, mattresses, pillows and bedspreads - walnut wardrobe - storage room - carpet floor - access and inspection for fuel supply system - reading lights - separated toilet with walnut furniture and laminate top with sink and mixer tap - mirror - shower with teak floor, and curtain - marin Wc - walnut furniture and washer-dryer housing - S/S opening portehole - led lights - venetian wooden curtains.

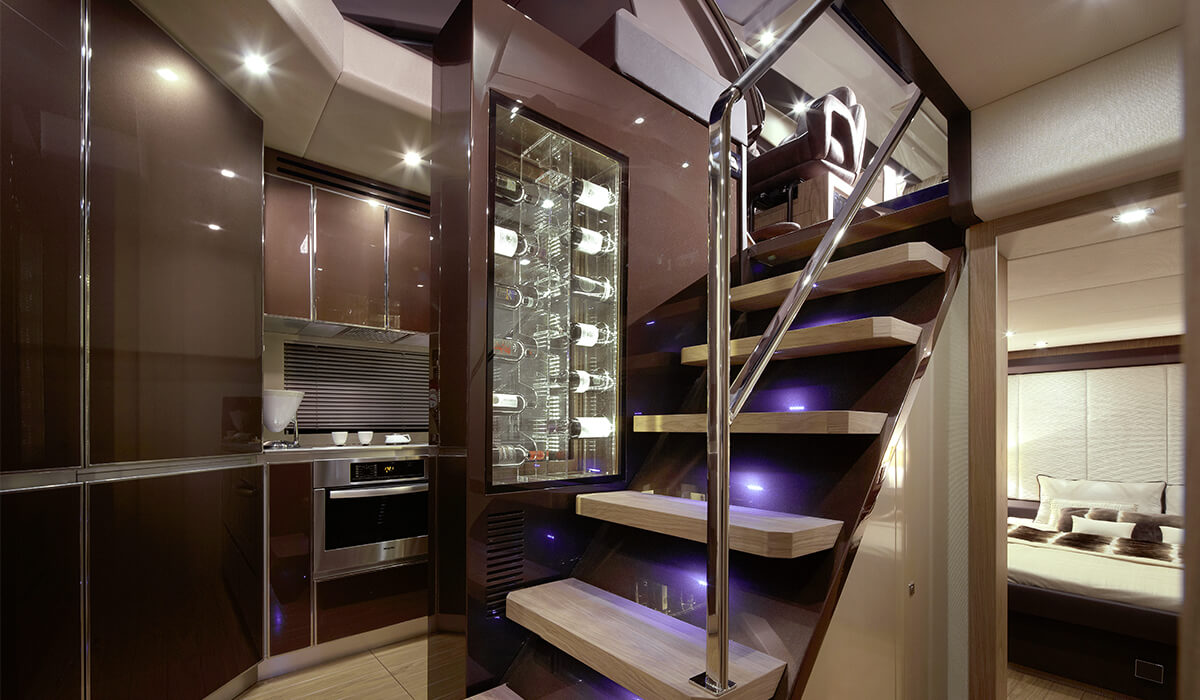

KITCHEN: Anti-skid stairs in walnut, storage underneath with electric panel and S/S leather handrails - walnut floor with double storage underneath - stair side furniture with predisposition for wine cellar (optional) and dishwasher (optional) - kitchen furniture with lacquered doors, S/S top with built-in sink, mixer tap, 200 l fridge, 65 l freezer, 4 rings electric induction cooker, cooker extractor fan, oven with microwaves function, pottery compartment, cutlery-holder and dustbin compartment - predisposition for centralized vacuum system - S/S opening porthole- venetian aluminum curtains.
ELECTRIC SYSTEM: N. 4 batteries for each engine 220 Ah/12v- N. 8 batteries for services 210 Ah / 12 v - generator battery 140 Ah/ 12v - N. 2 batteries for bow thruster and whinch 220 Ah / 12v - battery chargers for engines, propeller and whinch - battery chargers for services - battery charger for generator - inverter - converter - 16 kw generator - emergency electric and manual battery switches - double 230 v power shore cable.
BILGE pUMpS SYSTEM: N. 2 x 24 v electric bilge pumps (primary and secondary) for engine room with automatic and manual starting from the console + N.1 emergency bilge pump starting manually from the main switch panel - N. 2 x 24v electric bilge pumps for dinette and cabins with automatic and manual starting from the console.
ANTIFIRE SYSTEM: Automatic and manual extinguisher with Fm200 not asphyxiating extinguisher foam in the engine room - console control panel with electronic system which in case of danger will immediately stop the engines, YAcHT C68 9 generator and engines fans - console handle for manual emergency system.
FUEL SUppLY SYSTEM: N.1 vTR structural fuel tank (3200 l) - Engine fuel inlet electric valve - level indicator in console - double fuel inlet right and left side deck walkaround. CLEAR wATER SYSTEM: 1000 l high density polyethylene fresh water tank positioned under crew bed - double water pump in engine room with pressure regulation - 80 l hot water tank - high pressure water system from the dock - high pressure water line directly from shore and bow outlet for deck washing.
GREY wATER SYSTEM: N.1 high density polyethylene tank (470 l) positioned under the entrance stairs for all shower discharge - automatic and manual grey pump with sea discharge and possibility of suction from the dock to deck - additional pump with manual activation in case of failure of the main one - level indicator.
TOILET HOLDING SYSTEM: 400 l polyethylene high density water tank positioned under entrance stairs for all Wc discharge, equipped with 24 v pump for underwater discharge and shore suction - automatic/manual macerator pump for tank sea discharge - spare pump with manual selector in case of main demage- holding tank level indicator.
ENGINE ROOM: Access from central cockpit hatch through removable S/S stairs or from the stern platform ladder - aluminium central storage with bilge inspection - generator kw 19 - services and engines batteries kit - fire extinguisher - air conditioning chillers 72.000 BTU -pump for hydraulic system on board - engines flaps - water pump - anti saltiness filters - engine vent - blowers - complete soundproofing engine room - engines pre-filters with separation water/fuel. HYDRAULIC SYSTEM: main unit in engine room to manage opening/closing of garage, hydraulic gangway and tender lift - central unit for hydraulic steering control with autopilot pump, oil tank with level indicator and automatic discharge system (only with mAN engine).
Cena (vč. DPH): na vyžádání
stáhněte si brožuru v PDFDélka | 21,04 m |
---|---|
Šířka | 5,07 m |
Motory | Volvo Penta IPS ( max 2000kw) |
Maximální rychlost | 36 kn |
Palivové nádrže | 3200 l |
Architekt | Christian Grande |
Počet kajut | 3+1 |
---|---|
Počet lůžek | 6+2 |
